Extractor - Lyson 8 Frame Electric

400000047829
$850.00
In stock
1
Product Details

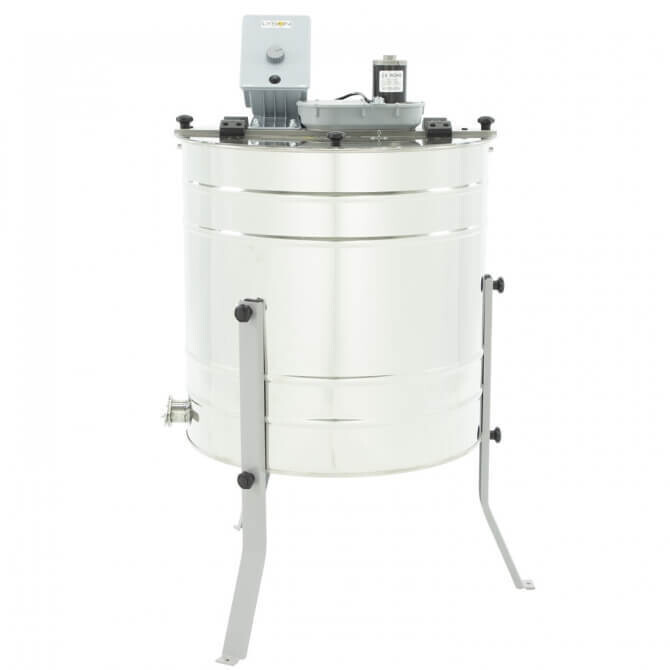

This motorized extractor was developed to extract four deeps or 8 mediums/shallows in a tangential basket. It extracts frames faster due to its larger drum diameter while the smaller dimensions make it easy to move around the honey house!

Features a tangential extracting drum with universal square wire basket. The drum, constructed of 24 gauge stainless steel, has a conical bottom to drain out the extracted honey without tipping.

Includes the LYSON motor kit used on many models to make extracting easier. The controller provides variable basket speed control to slowly increase speed as the honey leaves the frames.

Comes packed in a box with some assembly required.

Product Specifications:

  • Drum Diameter: 23-5/8" (600mm)
  • Drum Height: 24"
  • Overall Drum Height: 37-1/2"
  • Drum Thickness: 24 gauge
  • 1-1/2" Welded Stainless Steel Honey Gate
  • Clearance below Honey Gate: 13-3/8"
  • Basket Height: 17-3/8"
  • Basket Width: 15-3/4"
  • Power Supply: 120VAC
  • Motor: 24V DC 120 Watt
  • Some assembly required
  • Unit weight empty: 50 pounds

IN STORE PICK UP ONLY
